分類:紅外線加熱燈管
瀏覽:16397
朗普科技可根據客戶需求,提供定制加熱解決方案。

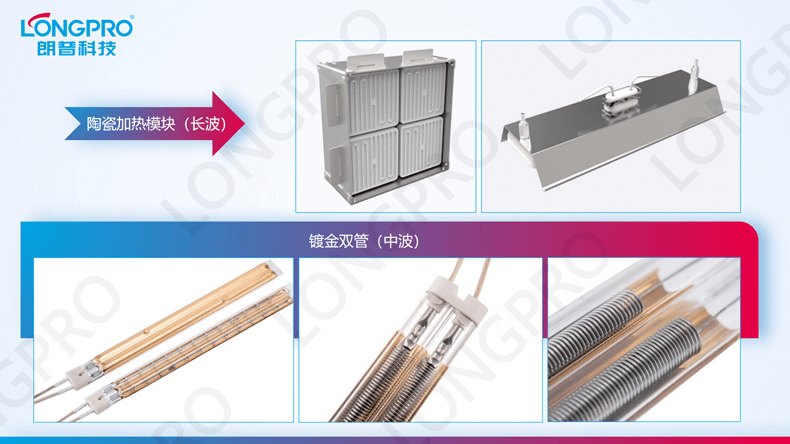

產品型號:中波雙管系列

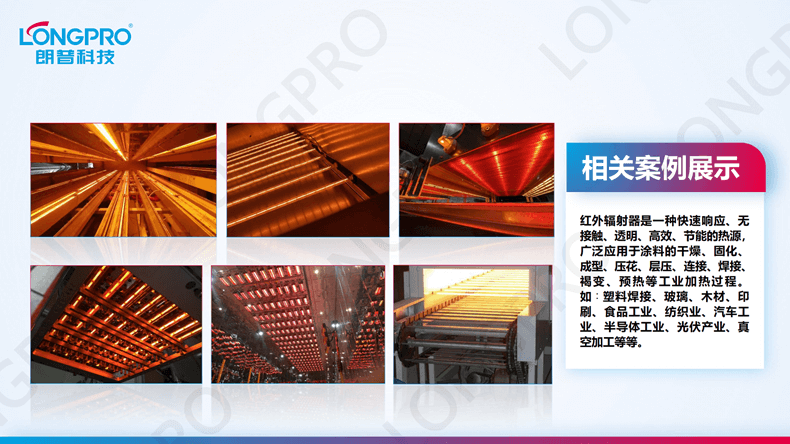

應用領域:紙張烘干、絲網印刷的烘干、復合玻璃的切割、玻璃退火加工、纖維加熱、紅外焊接、塑料加熱、汽車車身、零部件烤漆、成型之前預熱復合材料、涂裝烘干固化、風力發電機扇葉外表涂層烘干、紙張的涂覆、上色、膠化、上光等的干燥;薄膜拉伸、塑料焊接、科研單位等等
產品描述:?
1、啟動速度快,熱慣性小。
2、光波具有穿透性。由內而外對目標物體進行加熱,速度快,烘干效果好。
3、非接觸式加熱,無須空氣介質,即使真空中也能加熱。

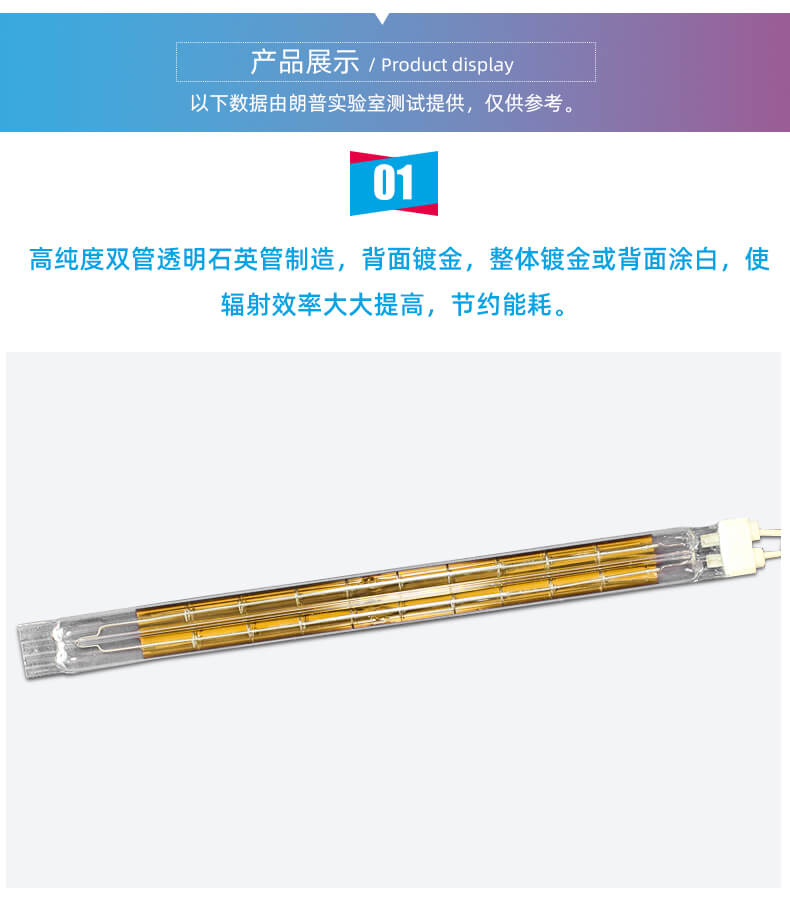

4、鍍金反射涂層,對物體進行定向,聚集加熱,大幅提高熱效率
5、可根據被加熱材料的特性進行設計,匹配材料易于吸收的波長,以最小能源實現最佳加熱效果
產品訂購熱線:15728183143





?

快速選型:
根據加熱場所,加熱物體和材料,加熱溫度,以及其他技術要求來定,我司提供技術支持!

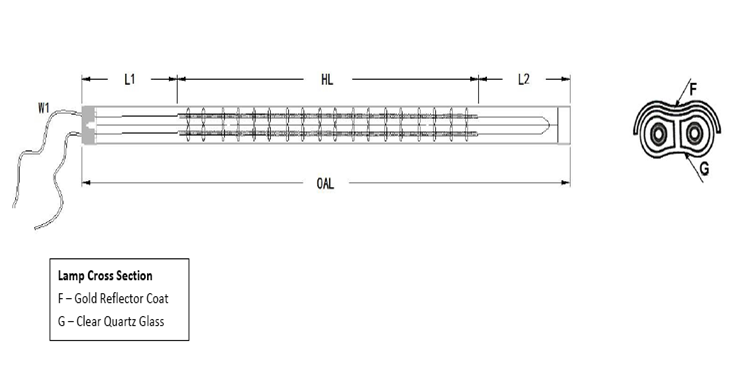

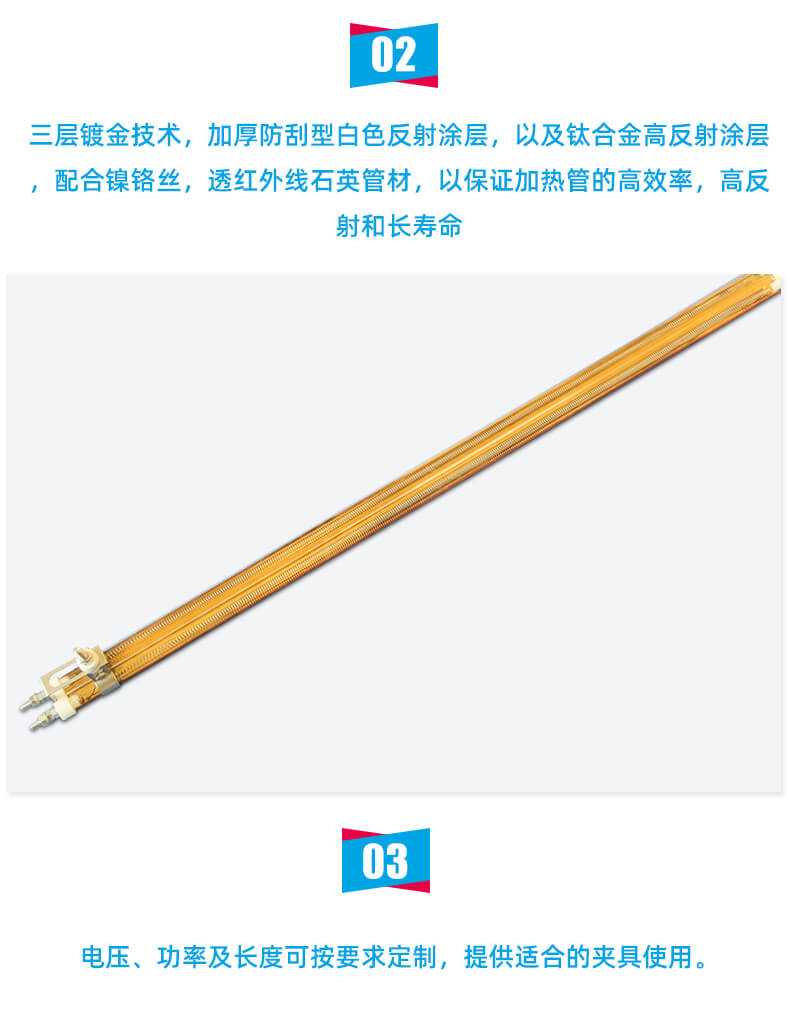

中波紅外線燈管可配備的高效反射層示意:
反射層分半鍍金或半涂白兩種

中波紅外線加熱管規格表:
| Cold End(mm)? 冷端 | ? Cross?Size(mm)? ? 外觀尺寸? ? ? ? ? | ? ?OAL(mm)?? 總長 | ? ?HL(mm)? ?? 加熱長 | ? Voltage(V)? ? 燈電壓 | ? ?Wattage(W)?? 燈功率 | ? Wave Length?? 波段 | Finish ? ?外觀? ? ? ?? | ? ?Wire?Connection 接線方式 |
| 60/60 | 15*33 | 1420 | 1300 | 230 | 3250 | MW | Gold Reflector | One Side |
| 50/50 | 15*33 | 1300 | 1200 | 230 | 2500 | MW | Gold Reflector | One Side |
| 50/50 | 15*33 | 1100 | 1000 | 415 | 2500 | MW | Gold Reflector | One Side |
| 35/35 | 15*33 | 1100 | 1030 | 415 | 2500 | MW | Gold Reflector | One Side |
| 75/25 | 11*23 | 1100 | 1000 | 400 | 3000 | SW | Gold Reflector | One Side |
| 75/25 | 11*23 | 600 | 500 | 400 | 3000 | SW | Gold Reflector | One Side |
| 40/25 | 11*23 | 405 | 340 | 230 | 1200 | SW | Gold Reflector | One Side |
| 75/25 | 11*23 | 300 | 200 | 230 | 1500 | SW | Gold Reflector | One Side |
| 75/75 | 11*23 | 1150 | 1000 | 400 | 6000 | SW | Gold Reflector | Two Side |
| 75/75 | 11*23 | 650 | 500 | 230 | 3000 | SW | Gold Reflector | Two Side |
| 75/75 | 11*23 | 850 | 700 | 230 | 4200 | SW | Gold Reflector | Two Side |
| 75/25 | 11*23 | 350 | 250 | 230 | 1875 | SW | Gold Reflector | One Side |
| 75/25 | 11*23 | 1100 | 1000 | 415 | 2500 | SW | Gold Reflector | One Side |
| 40/10 | 11*23 | 400 | 350 | 230 | 1200 | SW | Gold Reflector | One Side |
| 75/25 | 11*23 | 400 | 300 | 200 | 1800 | SW | Gold Reflector | One Side |
| 75/25 | 11*23 | 350 | 250 | 230 | 1000 | SW | Gold Reflector | One Side |
| 75/25 | 11*23 | 400 | 300 | 230 | 1875 | SW | Gold Reflector | One Side |
| 40/25 | 11*23 | 1100 | 35/1035 | 415 | 3500 | SW | Gold Reflector | One Side |
?注:以上數據均由本司提供,僅供參考。
